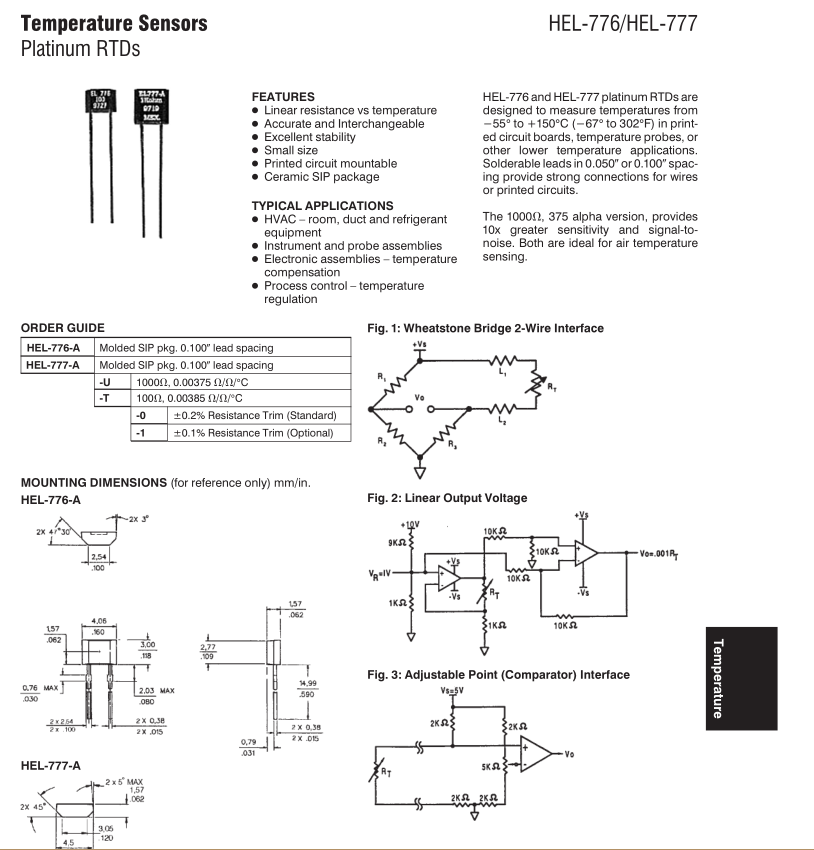

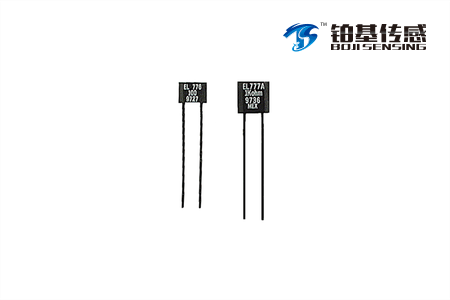

霍尼韦尔HEL-776/HEL-777系列

Sensor Type Thin film platinum RTD: R0 J 1000 V @ 0°C; alpha J 0.00375 V/V/°C
R0 J 100 V @ 0°C; alpha J 0.00385 V/V/°C
Temperature Range −55° to +150°C (−76° to +302°F)

Temperature Accuracy ±0.5°C or 0.8% of temperature °C (R 0 ±0.2% trim), whichever is greater
±0.3°C or 0.6% of temperature °C (R 0 ±0.1% trim), whichever is greater (optional)
Base Resistance and
Interchangeability, R 0 ± DR 0
1000 ± 2 V (±0.2%) @ 0°C or 100 ± 0.2 V (±0.2%) @ 0°C
1000 ± 1 V (±0.1%) @ 0°C or 100 ± 0.1 V (±0.1%) @ 0°C (optional)
Linearity : ±0.1% of full scale for temperatures spanning −40° to 125°C
Time Constant <10 seconds in air at 10 ft/sec

Operating Current :2 mA maximum for self heating errors of <1°C; 1 mA recommended

Stability: <0.25°C/year; 0.05°C per 5 years in occupied environments
Self Heating:<15mW/°C typical
Insulation Resistance :>50 MV @ 50 VDC @ 25°C
Construction: Plastic case, PLASKON 3300SH
Lead Material :Copper alloy 194 solder dipped tin silver
