霍尼韦尔HRTS Series

Thin Film Platinum RTDs

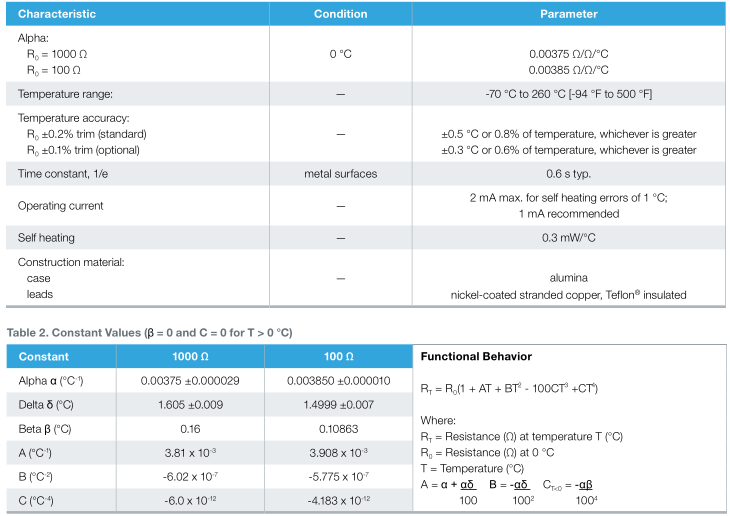

The HRTS Series Thin Film Platinum RTDs (Resistance Temperature Detectors) are designed to measure temperatures
from -70 °C to 260 °C [-94 °F to 500 °F]. These fully-assembled elements are ready to use in probe assemblies without the need for fragile splices to extension leads.
These products are manufactured using a thin layer of platinum deposited on an alumina substrate and are laser trimmed to a resistance interchangeability of a standard

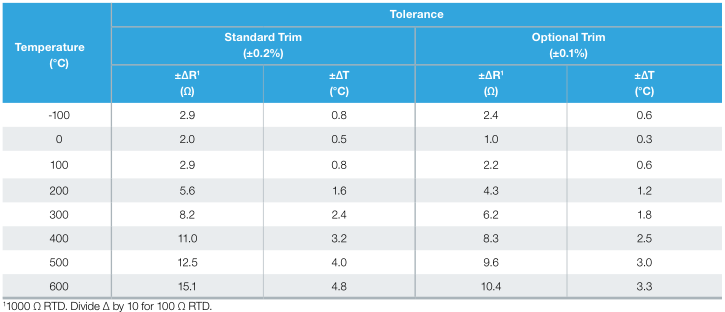

±0.2% (±0.5 °C accuracy) or an optional ±0.1% (±0.3 °C accuracy).

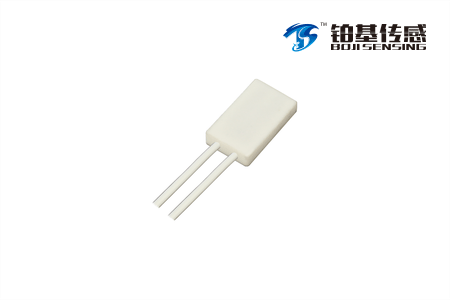

The sensor chip is then glassed, wired and potted to result in an alumina package with Teflon®-insulated lead wires.

Table 4. order Guide
Catalog listing description
HRTS-5760-B-T-0-12
HRTS Series platinum thin film RTD with two, 28 gauge TFE Teflon ® -insulated leadwires, a resistance and alpha of 100
Ω: 0.00385 Ω/Ω/°C, a standard ±0.2% trim resistance, and 305 mm [12 in] leadwires
HRTS-5760-B-T-1-12
HRTS Series platinum thin film RTD with two, 28 gauge TFE Teflon ® -insulated leadwires, a resistance and alpha of
100 Ω: 0.00385 Ω/Ω/°C, an optional ±0.1% trim resistance, and 305 mm [12 in] leadwires
HRTS-5760-B-U-0-12
HRTS Series platinum thin film RTD with two, 28 gauge TFE Teflon ® -insulated leadwires, a resistance and alpha of
1000 Ω: 0.00375 Ω/Ω/°C, a standard ±0.2% trim resistance, and 305 mm [12 in] leadwires
HRTS-5760-B-U-1-12
HRTS Series platinum thin film RTD with two, 28 gauge TFE Teflon ® -insulated leadwires, a resistance and alpha of
1000 Ω: 0.00375 Ω/Ω/°C, an optional ±0.1% trim resistance, and 305 mm [12 in] leadwires
